Tools needed:
- Set of small screwdrivers. The screws have Philips heads. A thin flathead screwdriver is useful for prying apart the plastic latches in the camera.
- Can of compressed air.
Take off the filter adapter silver ring around the lens by pressing the button next to it. Look at the camera from every angle and take out all the screws you can find. You should come up with a system to track where each screw came from because the screws that you will remove have several types of threads and several lengths. For each screws or group of screws, I ripped a small piece of paper and wrote on it where the screws belong. I formed it into a "container" by creasing it with my thumbs and my index fingers. The problem is that halfway through, you don't know how to name the locations anymore. Probably the easiest thing is to print the images on this site and number the screw holes in the pictures as you remove each screw. This will also make sure you put all the screws back in when you re-assemble the camera.
Take off the filter adapter silver ring around the lens by pressing the button next to it. Look at the camera from every angle and take out all the screws you can find. You should come up with a system to track where each screw came from because the screws that you will remove have several types of threads and several lengths. For each screws or group of screws, I ripped a small piece of paper and wrote on it where the screws belong. I formed it into a "container" by creasing it with my thumbs and my index fingers. The problem is that halfway through, you don't know how to name the locations anymore. Probably the easiest thing is to print the images on this site and number the screw holes in the pictures as you remove each screw. This will also make sure you put all the screws back in when you re-assemble the camera.

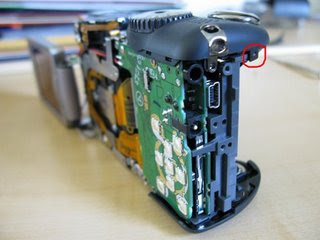

To remove the LCD, there's also this screw and one or two others:

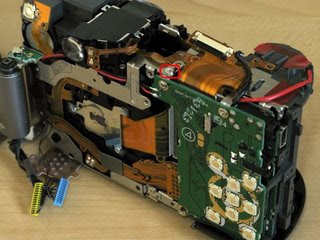

Take out the screws that hold the viewfinder in place.

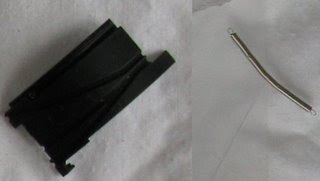

Now comes the fun part: disassembling the lens assembly. Start by taking off the little cover on top of the lens held by a spring if it hasn't fallen off already:








Note, Piece 4 can be decomposed further.

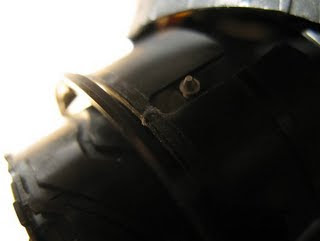

Also, be very careful with the two ribbon cables that go into the lens assembly; I managed to break one of them at some point. I moved to another house while the camera was apart, so I stored everything in a few plastic bags and when I took them out two weeks later, one of these two ribbon cables was ripped.
It's also useful to have a can of compressed air to clean the lens of dust as you are reassembling it.
At the end of the process, you will have the following pieces:

Here's my Crazy Glue job:

Okay, time to re-assemble everything! I'll refer to the cylindrical parts of the lens numbered in red in the previous pictures. The green line shows the ring edge of Piece 4. Rotate the ring until the opening in the ring lines up with the opening of the track in Piece 3. Place Piece 5 inside Piece 6 and rotate them until Piece 5 slips in. Take the combined piece and place it so that the pins from Piece 5 slips through the openings in the ring of Piece 4 and the openings in Piece 3. Push Piece 6 down so that its pins slip through the openings of Piece 2. Here's how it looks:

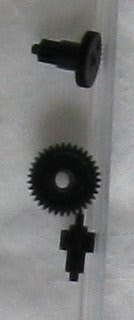

Place the three gears inside and snap the back into place. To complete the lens, put the cover with the spring back in place--without permanently deforming the spring. Now go the steps in reverse order to re-assemble the camera.
Good luck!
